One-Click Vectorization to Editable DWG

Published: 2026-8-10 17:54| Publisher: 灵犀一指| View: 84| Comments: 0

To all the drafters out there—

what’s the one moment in your design career that really broke you?

Is it chasing down unpaid project fees while you're the one footing the bill? Or is it getting a hand-drawn sketch from the client's boss at 5 PM, with that casual note: "Deepen this. Need it tonight."

And every single time, you know the drill—fire up CAD, import the image, tweak the scale, and start tracing. Line by line, node by node, manual tracing without end.

But come on—it's 2026.

AI can whip up stunning renders in seconds.

Are you telling me it still can't handle CAD?

01 Five use cases that hit every pain point—dead on.

For when you're handed "just a sketch" :Instantly generate a CAD linework base to build on.

Clients rarely hand over proper source files—more often than not, it's just a photo, a render, or a screenshot from a webpage.

Just drop that image into SUAPP AIR, and it instantly extracts the outlines, cleaning them up into a usable CAD base map in seconds. Response time? Zero lag.

Bridging Schematic Renderings to Construction Documentation

In early design stages, we often use AI to generate stunning concept visuals. In the past, these were just "eye candy" for presentations—nice to look at, but not much else. Now, you can take those AI-generated plan and elevation concepts and convert them directly into editable DWG files. Transform AI-generated floor plans and elevations directly into editable, layered DWG files. Eliminate redundant drafting and bridge the gap between schematic concept and technical execution. What you see is truly what you get.

Restoration of Archival Documentation and Legacy Drawings.

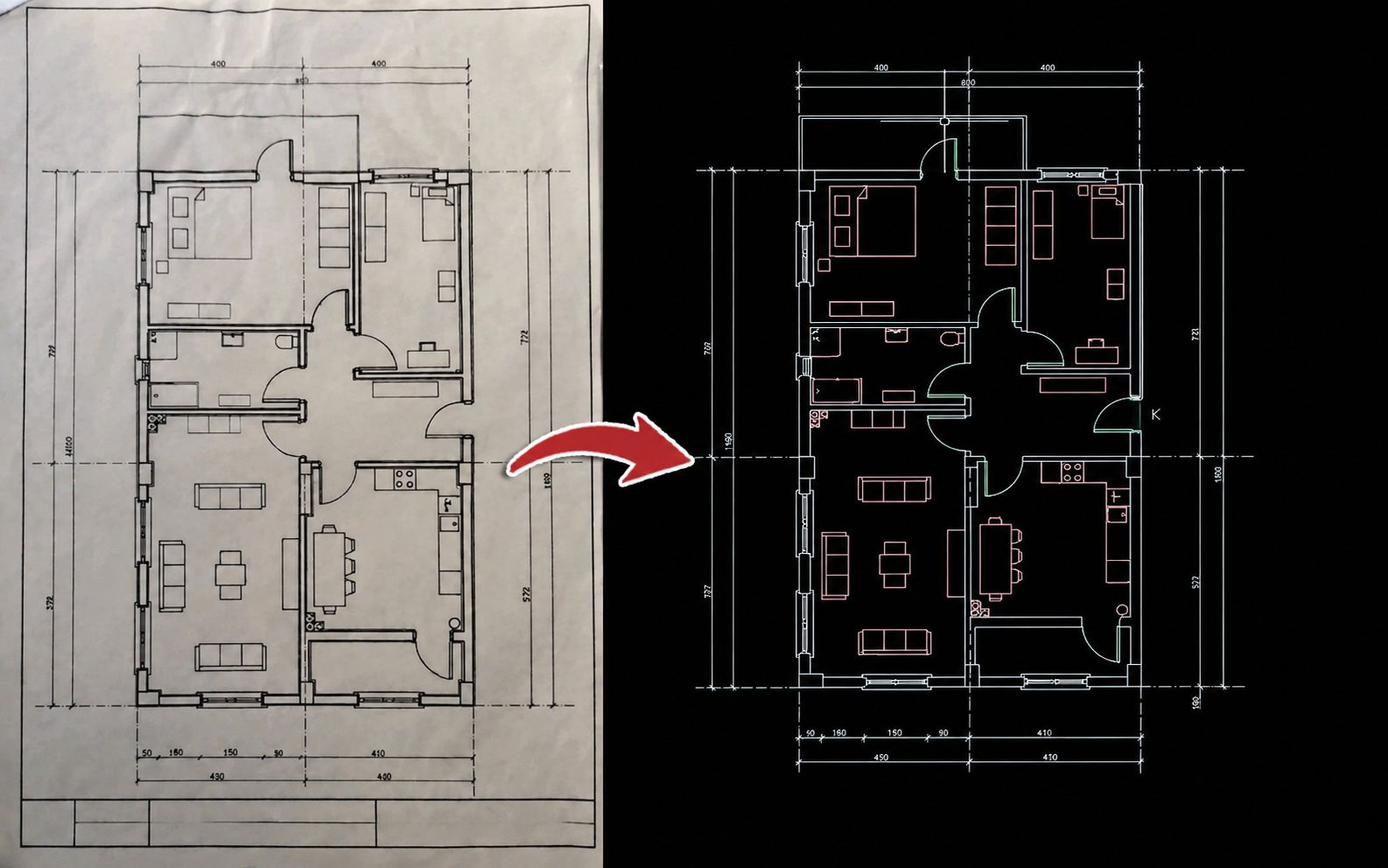

When taking on renovation projects for older buildings, you're often handed nothing but faded scans, yellowed prints from decades past, or a quick sketch your lead designer dashed off on tracing paper. With the [Image to CAD] feature, you can instantly extract vectorized linework with a single click—saving yourself the painstaking ordeal of redrafting everything from scratch.

Complex Master Plan Partitioning: Converting Color-Coded Site Plans into Classformed DWG Layers.

Color-coded site analysis diagrams, master plans, or intricate landscape zoning maps—manually extracting boundaries from these can be an absolute nightmare. AI steps in to intelligently recognize colors and edges, instantly converting them into logically layered DWG files. It's a massive efficiency boost for processing site drawings.

Say no to mechanical work: generate a rough draft in seconds, then refine it manually.

AI is about "efficiency," not "replacement." For complex projects, designers can use this feature to produce a CAD first draft in just minutes. From there, you take over—fine-tune dimensions, polish details, and push the design further. The result? At least 80% less time spent on grunt work.

02 Two Conversion Modes

Line Art

Best for: plans, elevations, sections, site plans, detail drawings, scanned documents, and any linework-heavy images.

Highlights:

● Lines to vectors in a snap: Intelligently detects and converts every line in your image into editable CAD linework.

● Auto-layered by color: Automatically generates layers based on the original image's colors—no more manual layer sorting. Makes file management a whole lot easier.

● First draft, fast: Perfect for turning concept sketches, web grabs, or faded scans into a DWG draft in minutes, so you can jump right into editing, layering, and detailing.

Color Block Mode

Best for: planning site plans, functional zoning diagrams, site analysis maps, early-stage concept drawings, interior color-blocking layouts, and any image where clear color regions and distinct boundaries matter—and where you want to preserve the zoning or block relationships.

What it delivers:

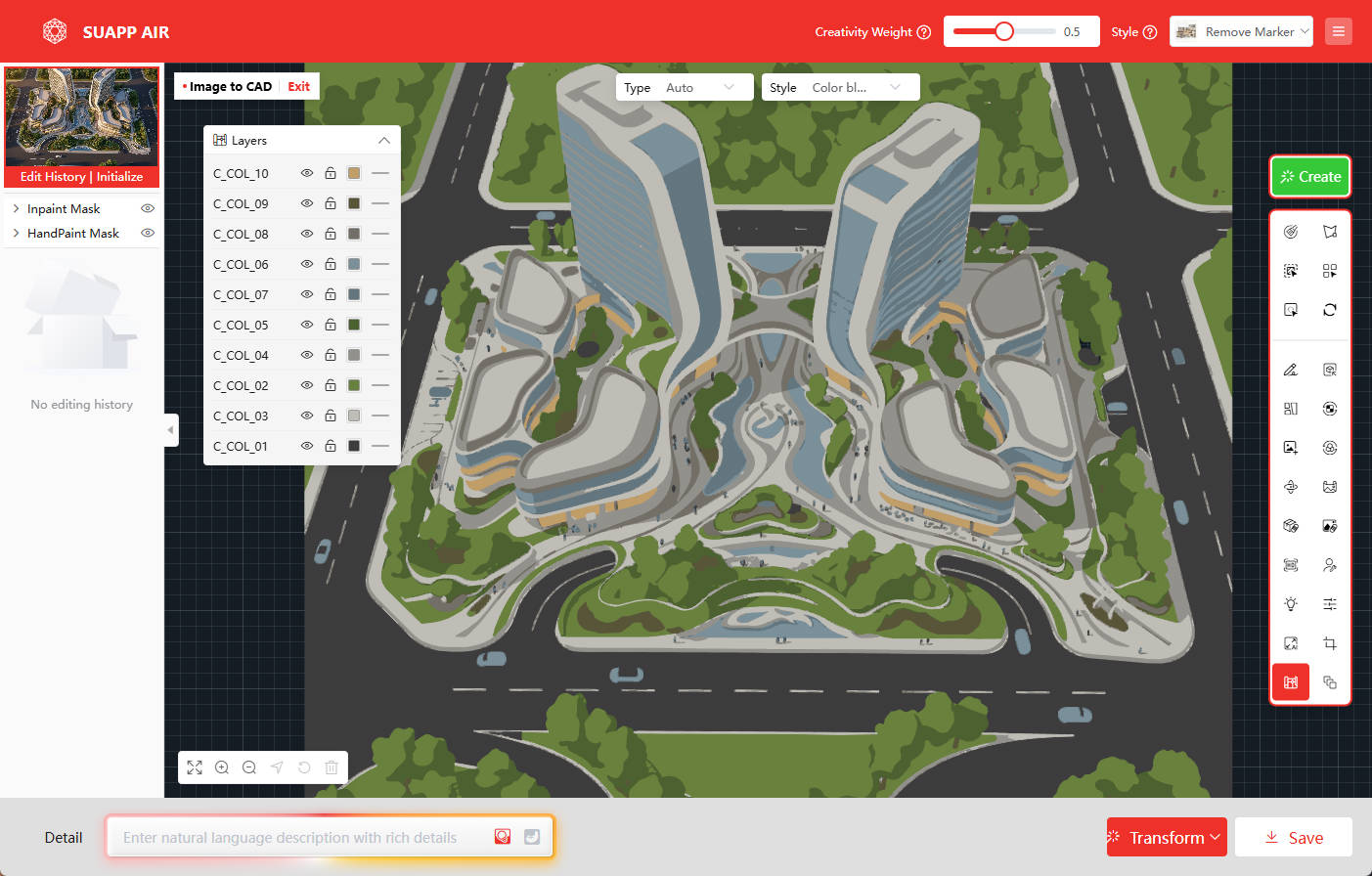

● Precise block-to-CAD conversion: Perfectly captures the main color regions in your image and converts them directly into CAD hatches or closed boundaries.

● Smart layer management: Also supports auto-layering by color, making it incredibly easy to hide, tweak, or reorganize different functional zones right inside CAD.

● Color DWG, ready to go: Preserves the original visual logic and zoning relationships, giving you a fully editable color DWG draft to keep working on.

03 How It Works

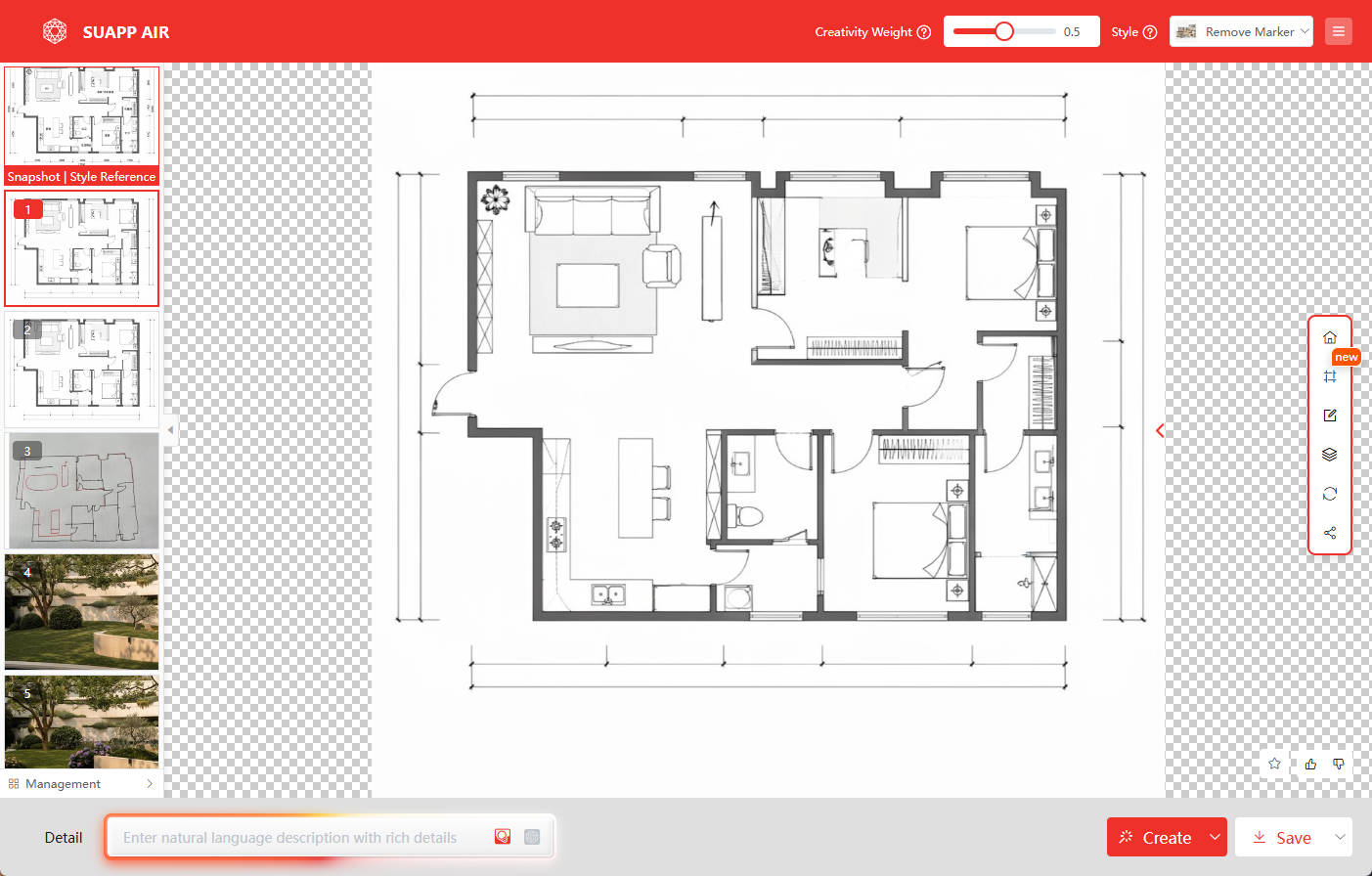

① Import an image

(Pro tip: If you're aiming for a clean outline CAD, run your image through the Style → CAD Sketch filter first to turn it into a pure line drawing—this will give you even better results when converting to CAD.)

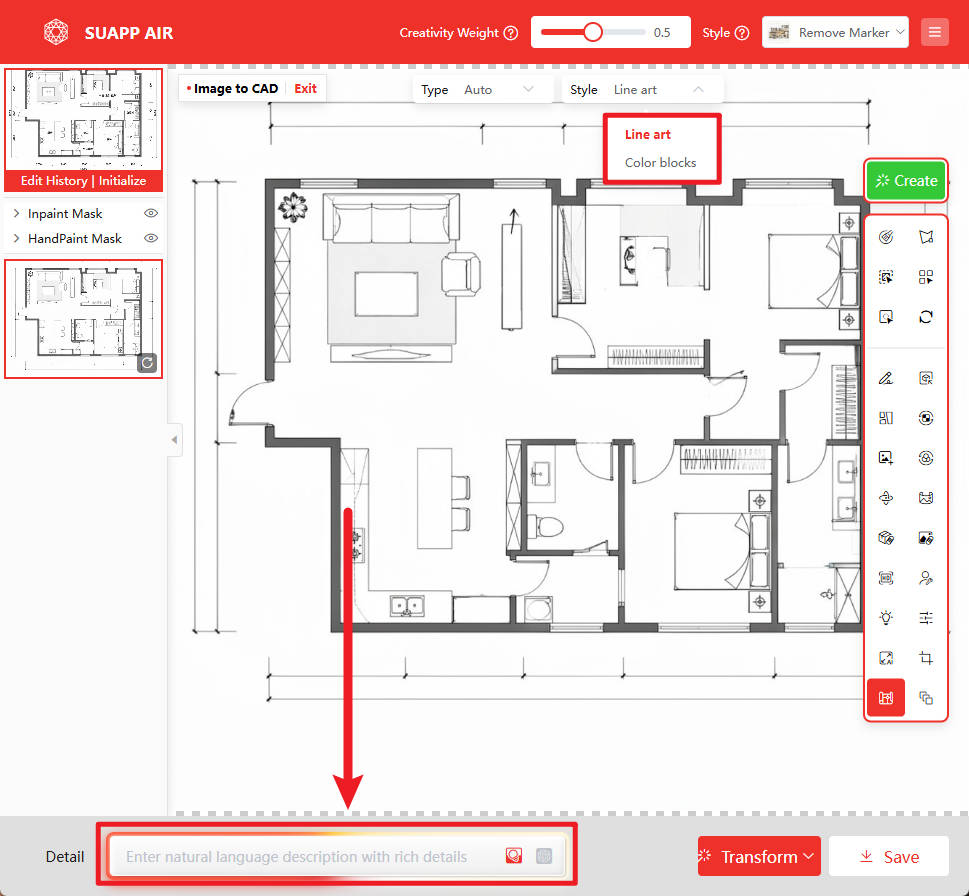

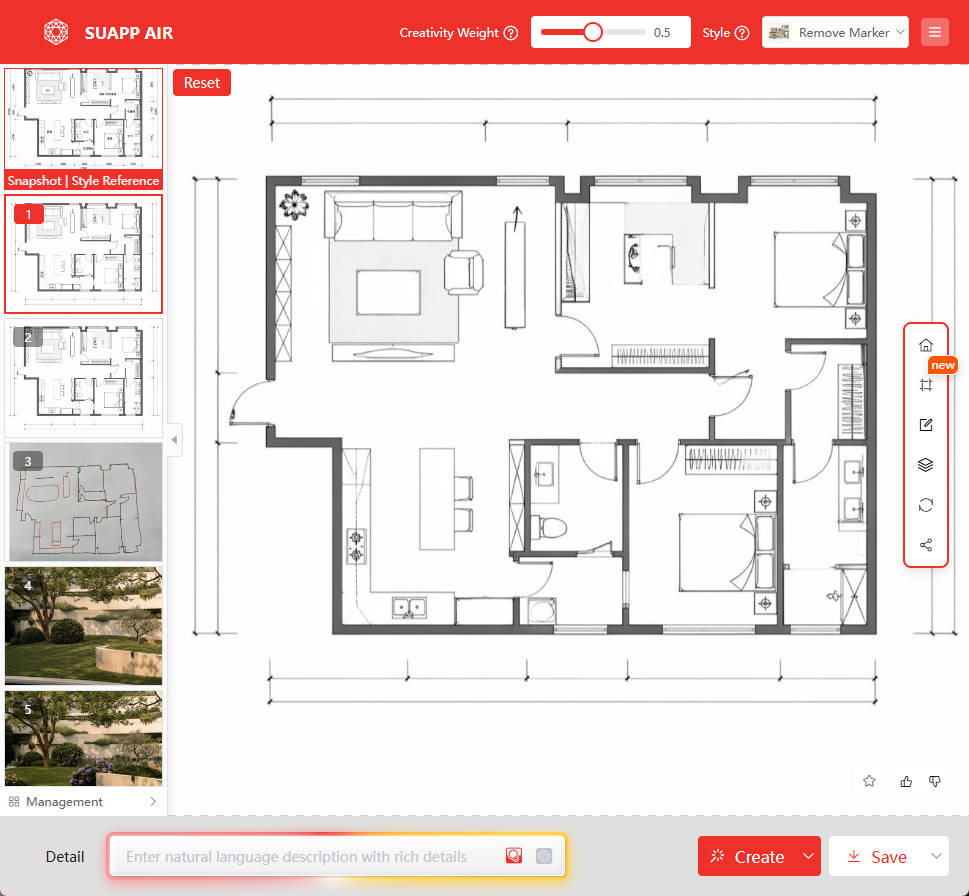

② Go to Editing and select the Image to CAD.

③ Select the type and style—or use a custom prompt to fine‑tune the output.

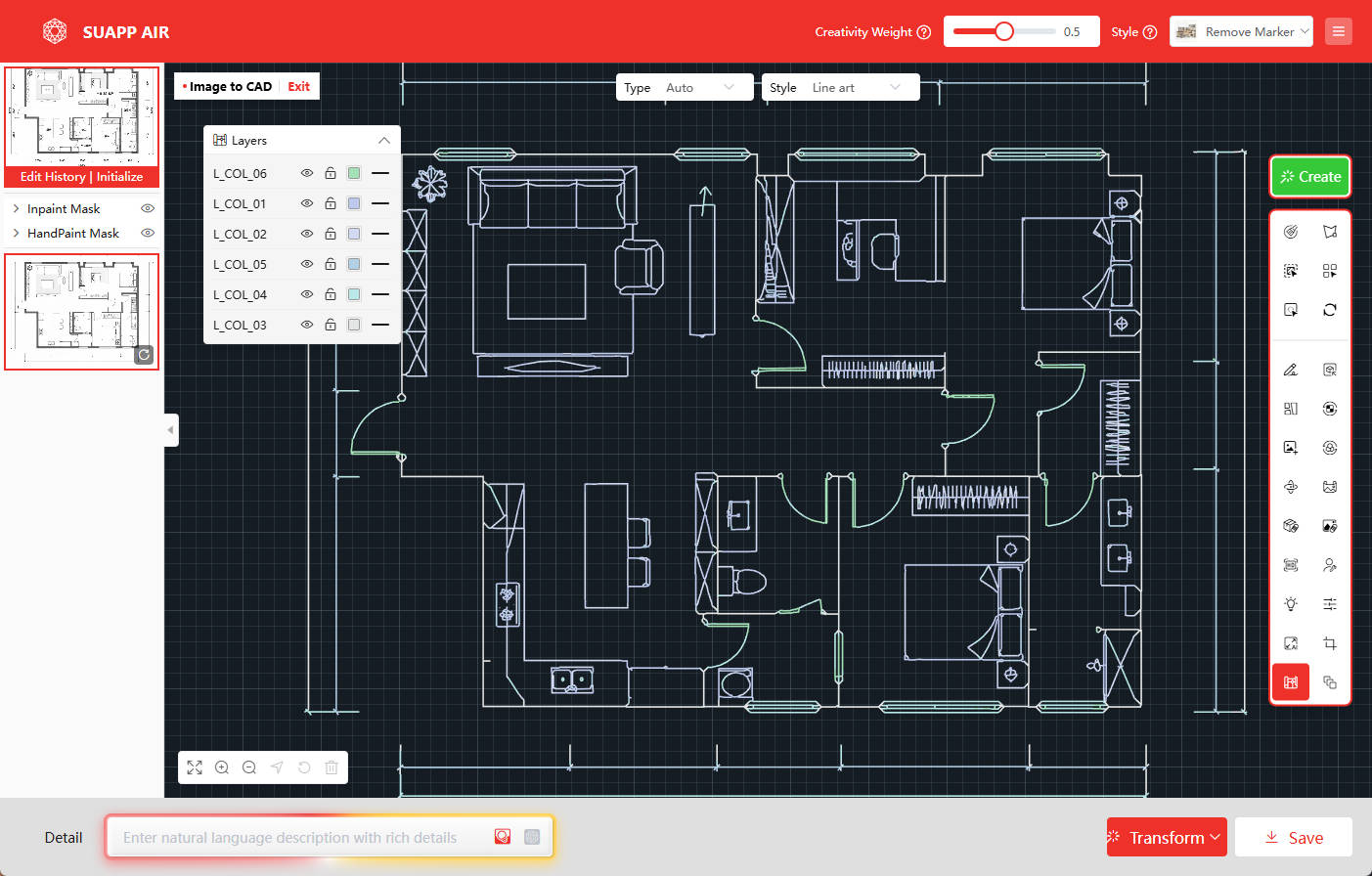

④ Click Create, and your CAD is generated in seconds. You can then do basic edits to the CAD right inside the SUAPP AIR interface.

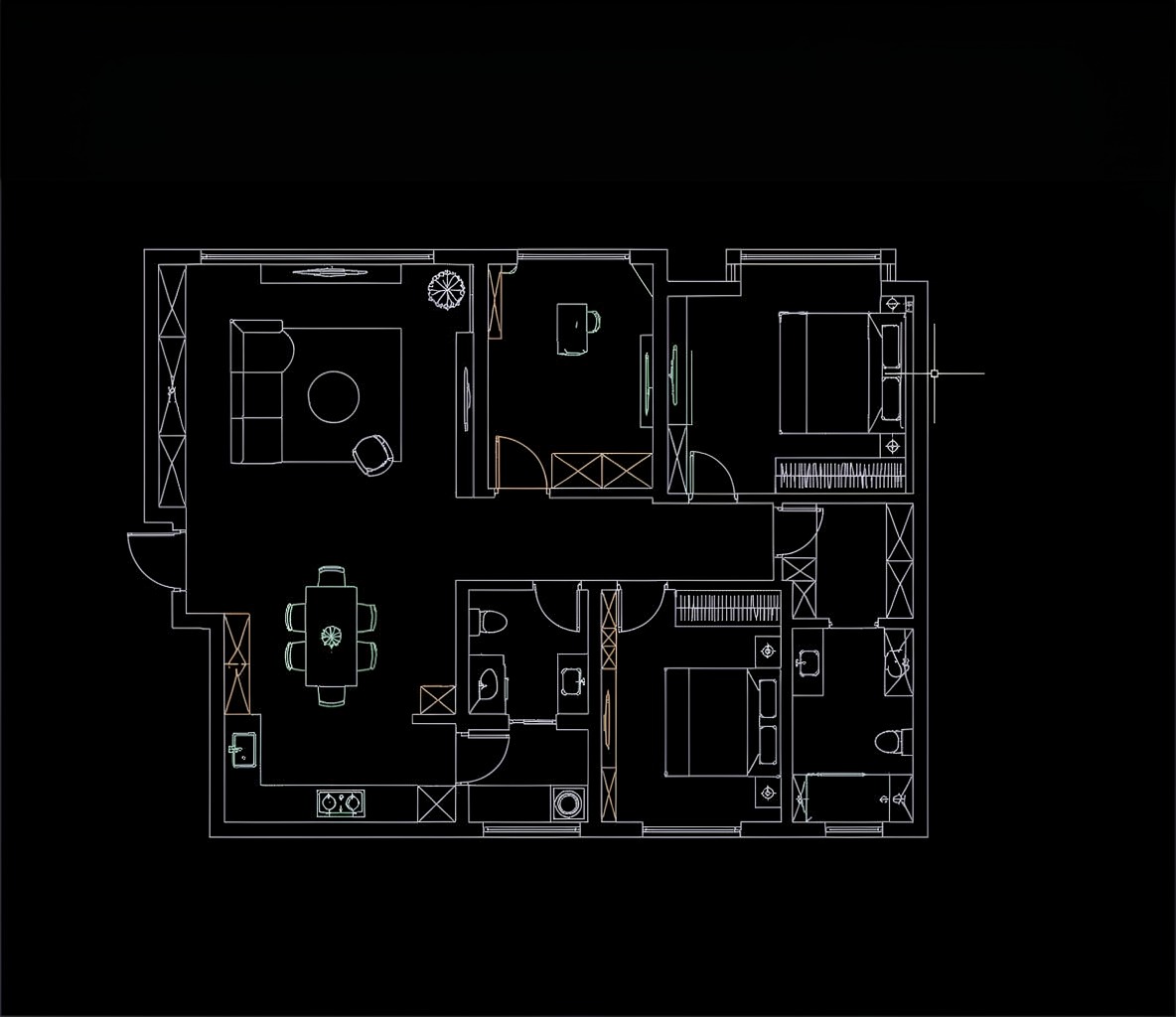

⑤ Click Save to export your file as a DWG. Once opened in CAD, you can keep editing—just like any native file.

From hand-drawing to computer-aided drafting, and now to AI-powered design—tools keep evolving, and they keep pushing us forward. It's time to stop being a human tracing machine. Take back your time for real design. Reclaim your creative agency—and your work-life balance.
